產品品牌：韓國CAS
產品名稱：CAS CI-1580A稱重儀表,韓國凱士CI-1580A顯示控制儀表
咨詢電話：086 20 22157650
供貨地址：廣州市南沙區東涌鎮民安路21號東一商貿大廈A座617
詳細說明：
韓國CAS CI-1580A稱重儀表特點
■ Features
· Measures to screen off external noises
· Built-in self-diagnosis and self-recovery functions from failure
· External resolution : 1/20,000
· Electrostatic data memory
· 2 built-in external relay input terminals (zero, tare/tare removal)
· Data memory
· 24V of input power supply can be used with the use of DC power supply regardless of
polarity (500mA < Trans Type > or more is recommended)
· FAC (Full Auto Calibration) method for calibration
· Equivalent input method for Calibration
· Basic installation of RS-232C
· Option : RS-422/485
· Option : I/V-OUT

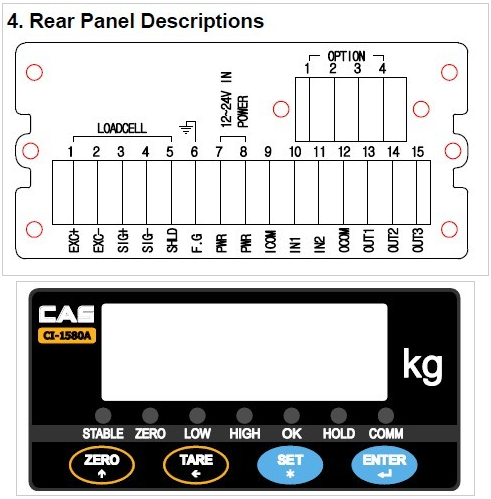

韓國CAS CI-1580A稱重儀表面板說明
■ Cautions
· Do not drop or apply severe shocks to the product.
· Do not install the product with high voltage or severe electric noises.
· Do not install the produce with direct sunlight or severe vibrations.
· Connect the product with external peripheral devices after turning off the power switch.
· Keep the product from water or rain.
■ Accessories
· Product manual
· Option (separate option for any addition): 1 EA of adaptor (DC 24V / 500mA)
5
2. Specifications
■ Analog Part & A/D Conversion
Input sensitivity 0.3㎶ / D
Adjustment range of Zero - 0.6mV ∼ + 1.5mV
Load Cell Excitation Voltage DC 10V (±5V)
Temperature Coefficient
Zero : ±10 PPM / ℃
SPAN : ±10 PPM / ℃
Input Noise ±0.6㎶ P.P
Input Impedance Over 10㏁
A/D conversion method ΔΣ
A/D Internal Resolution 520,000 Count(19bit)
A/D Conversion Rate 200 times / Sec
Non-linearity 0.01% FS

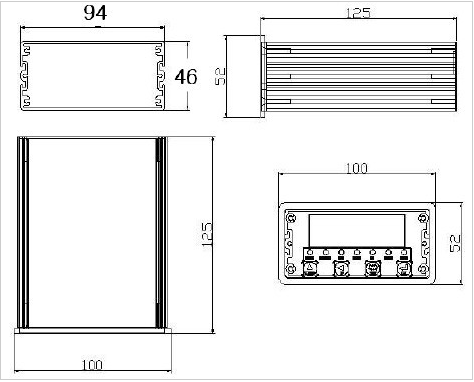

韓國CAS CI-1580A稱重儀表尺寸
■Digital Part
Display
7-Segment, 5 digit Red LED
Character size:12.7(H) ×7.3(W)mm
Division ×1,×2,×5,×10,×20,×50
Below Zero Indication “-“ Minus Sign
Decimal Point 0, 0.0, 0.00, 0.000
Status Lamp Stable, Zero, High, Low, OK, Hold, Comm
Function Key ZERO, TARE, SET, ENTER6
■ General Specification
Power DC 24V / About 500mA (Trans Type)
Operating Temperature
Range
-5℃~ +40℃
Operating Humidity
Range
Under 85% Rh (Non-condensing)
Product Size (W) 100 X (H) 52 X (D) 125
Product Weight About 450g
■ Options
Option-1 RS-422/485
Option–2I-OUT (4~20mA)
Option - 3V-OUT (0~10V)
